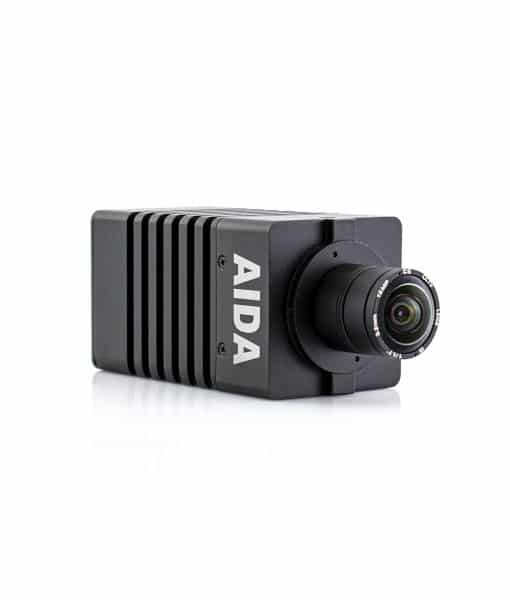

AIDA UHD-200 4K 60p POV Camera

AIDA Imaging UHD-200 4K 60p POV Camera with Varifocal Lens

The UHD-200 4K 60p POV Camera from AIDA Imaging comes with a 3.6 to 11mm varifocal lens and captures up to DCI 4K resolution POV video. With features like back-illumination, motion-compensated temporal noise reduction, and auto white balance, the UHD-200 delivers sharp images even in low-light conditions. Ultracompact at only 2 x 4″, it can be mounted in very tight spaces via a tripod-mount thread on the bottom. The camera features an onboard HDMI 2.0 output, a breakout cable connector, and an auto iris lens connector. Via the breakout cable, it provides RS-485, audio, OSD, and power connections.

KEY FEATURES

• 4K 1/1.7 Progressive Scan CMOS sensor capable of 4K (4096 x 2160) captures sharp and vivid images even under very low light conditions.
• Power by a back-illuminated pixel technology.
• Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
• Superb motion-compensated temporal noise reduction filter for motion video without blurring.
• OSD control breakout cable with two audio inputs and RS-485 for remote communication.
• Flawlessly relays multi-channel embedded audio via HDMI 2.0.
• Perfectly suited for broadcast, pro audio/video, and security.
• Versatile, compact, and rugged design.

SPECIFICATIONS AIDA UHD-200 4K 60p POV Camera

Image Sensor	1/1.7″ Progressive CMOS
Sensor Size	Diagonal 9.93mm(17:9)
Effective Pixels	Horizontal: 4096, Vertical: 2160
Pixel Size	1.85 μm (H) x 1.85 μm (V)
Resolution	4096 x 2160, 3840 x 2160, 1920 x 1080, 1280 x 720
Resolution/Rate	4K (4096 X 2160) 60/59.94/50/30/29.97/25/24 3840p 60/59.94/50/30/29.97/25/24p 1080p 60/59.94/50/30/29.97/25p/24p 1080i 60/59.94/50i 720 60/59.94/50p
Output	HDMI 2.0
Color Space	4:2:2 (YCbCr) 10bit

Lens

Lens	C/CS Mount (with 4K 3.6mm – 11mm vari-focal lens)

Audio

Audio Input	3.5mm TRS Stereo Mic-in & Line in over I/O Cable
Sample Rate	16/24/32 Bits

Physical

Camera Control	RRS-485, OSD Button
Operation Temp	15°F – 120°F
Dimension	51mm x 51mm x 102mm / 2.01″ x 2.01″ x 4.01″
Weight	384g / 0.84lbs
Power	12VDC (+9 – +15VDC



Connection



INCLUDED BY DEFAULT

• AIDA UHD-200 4K 60p POV Camera
• AIDA Imaging CS4K-3611V – 3.6-11mm f/1.6 Varifocal 4K Lens (CS-Mount)
