iSmart LTC5-NA2001N NDI|HX Full HD Tracking Camera

The iSmart LTC5-NA2001N realizes smooth tracking performance, free from interference of other moving objects, even if the target turns around, stands still for a long time. Other small gestures will neither affect the tracking

  • Full HD
  • One camera
  • NDI|HX
  • 20x Optical Zoom

 2.100,00

3 in stock (can be backordered)

  • Ordered before 4PM same day shipping
  • FREE shipping within EU
  • Pricing Ex VAT

iSmart LTC5-NA2001N NDI|HX Full HD Tracking Camera

Based on industry-leading face detection and lock tracking algorithm the iSmart LTC5-NA2001N realizes smooth tracking performance, free from interference of other moving objects, even if the target turns around, stands still for a long time. Other small gestures will neither affect the tracking. Track lecturer all around the classroom, even if lecturer walks into student area. Auto adjust as per the height of lecturer.

KEY FEATURES iSmart LTC5-NA2001N

  • 1080P60
  • H.265/H.264 video compression
  • Support dual stream
  • NDI®|HX
  • Support HDMI, 3G-SDI, Ethernet, USB 3.0
  • 1 channel audio LINE IN, AAC compression
  • POE

SPECIFICATIONS iSmart LTC5-NA2001N

Model LTC5-NA2001N
Image Sensor 1/2.8″ CMOS, 214MP
Optical Zoom 20X
Digital Zoom 12X
Focal f=4.7mm ~ 94 mm
Iris F1.6 ~ F3.5
FOV 59.5° ~ 2.9°
Focus Auto, Manual, PTZ Trigger, One Push Trigger
Exposure Auto, Manual, Shutter Priority, Iris Priority
Shutter Speed 11~ 1/10,000s
AGC Auto, Manual
White Balance Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking
S/N ≥50dB
Digital Noise Reduction 2D/3D
BLC Yes
Wide Dynamic Yes
PTZ
Pan Angle -170° ~ +170°
Tilt Angle -30° ~ +90°
Pan Speed 0.2° ~ 100°/s
Tilt Speed 0.2° ~ 60°/s
Preset Number 64
SDI/ RJ45/HDMI Output
Video output 1080P60/P50/P30/P25,1080I60/I50, 720P60/P50
Network
Resolution Max. 1080P60
Image Compression H.265, H.264
Audio Compression AAC
Protocols HTTP, TCP, UDP, RTSP, RTMP, ONVIF
Dual Stream Support

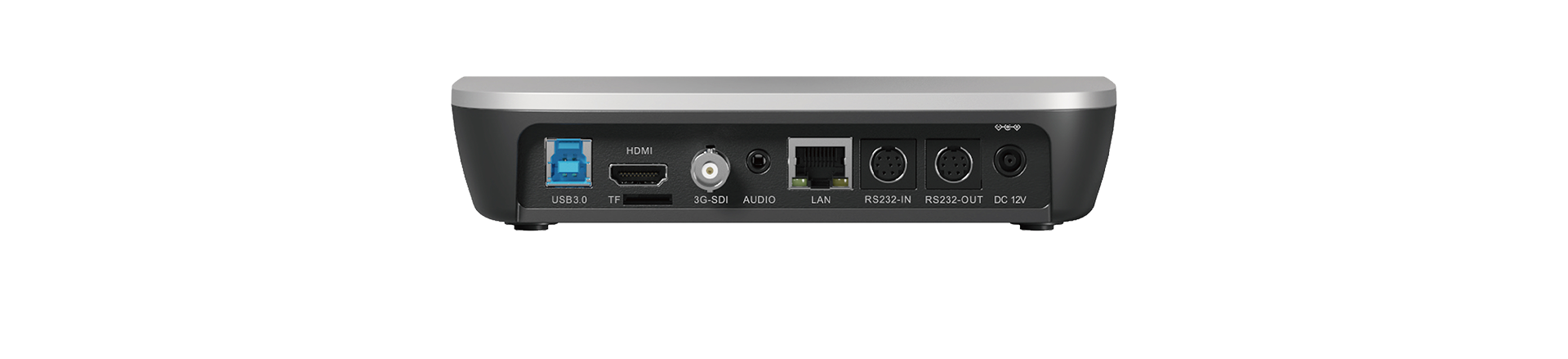

Interface
Power DC12V
HDMI Interface 1×HDMI1.4 output,Max.1080P60
3G-SDI Interface 1×3G-SDI output,Max.1080P60
USB Interface 1×USB2.0 Type-B
Network Interface 1×10M/100M RJ-45,optional POE/NDI/HX
Audio Interface 1×LINE IN
Control Interface 1×RS-232 IN/IR, 1×RS-232 OUT, 1×RS-485
General
Protocol VISCA, PELCO-P, PELCO-D
Power Consumption <15W
Working Temperature 0 ~ 40°C
Relatively Humidity 10% ~ 90 %
Dimensions (W×H×D) 176mm×169mm×136mm
Weight <1.1KG
Color Grey



INCLUDED BY DEFAULT

  • iSmart LTC5-NA2001N
  • Power adapter
  • Remote controller
  • Power Cable
Brand

MPN

Options

IP, NDI, SDI, Tracking, USB

Optical Zoom

20x

SKU

IS-LTC5NA2001N

Datasheet

20220726200300733
