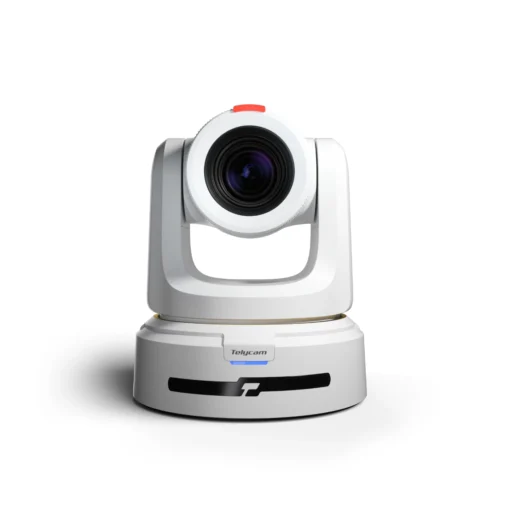

Telycam Explore 100 White

Telycam Explore 100 White

4K PTZ camera with 30X optical zoom and native AI auto-tracking

The Telycam Explore 100 White is a professional PTZ camera designed for high-precision 4K video capture in broadcast, live event, and studio environments. Built with a 1/1.8-inch 9MP UHD CMOS sensor and a 30X optical zoom lens, this camera delivers clear footage across large venues and complex production setups. Its extensive physical and network interfaces enable direct integration into high-end switcher setups and IP workflows.

With onboard AI auto-tracking and auto-framing capabilities, the camera maintains subject focus automatically without requiring extra software or manual operators. Additional features such as Genlock frame synchronization, FreeD virtual tracking output, and mini XLR audio inputs make it a versatile central unit for modern video infrastructure.

9MP UHD CMOS sensor for high-resolution 4K capture

The Telycam Explore 100 White features a 1/1.8-inch 9MP UHD CMOS sensor built for detailed broadcast and live event video capture. It captures smooth 4K resolution video at up to 60 frames per second over 12G-SDI, HDMI 2.0, NDI, and SFP+ outputs. This high-framerate 4K performance ensures sharp image clarity and fluid motion during live studio broadcasts and venue productions.

For dim environments, the camera operates in low-light conditions down to 0.5 lux at F1.35 while utilizing 2D and 3D noise reduction to preserve picture quality. Operators gain granular control over visual output through configurable exposure modes, white balance presets, backlight compensation, and gamma settings. These built-in image controls help production crews maintain precise color and brightness across shifting lighting setups.

30X optical zoom lens for long-range stage coverage

The built-in 30X optical zoom lens features an f=6.91-214.64mm focal range with an aperture of F1.35 to F4.6. This optical system allows production teams to capture tight close-ups from across large venues while maintaining image clarity. The horizontal viewing angle scales smoothly from 63 degrees at the wide end down to 2 degrees at telephoto. With a minimum working distance of 1.5m, operators retain setup flexibility when shooting subjects closer to the lens.

Comprehensive stage coverage is supported by a pan rotation range of -170 to +170 degrees and a tilt range of -90 to +90 degrees. Precise motor movement at speeds from 0.1 to 180 degrees per second enables smooth manual or automated tracking across dynamic set spaces. This wide angular movement ensures full venue visibility without requiring physical camera repositioning during live events.

Telycam Explore 100 White tracking for dynamic framing

Native AI-based auto-tracking and auto-framing capabilities allow the Telycam Explore 100 White to follow subjects dynamically across a stage. This intelligent system maintains ideal shot composition without requiring continuous manual joystick adjustments from an operator during live events.

The pan and tilt mechanisms achieve rotation speeds from 0.1 to 180 degrees per second with 0.1-degree accuracy. Featuring a pan range from minus 170 to plus 170 degrees and a tilt range from minus 90 to plus 90 degrees, the camera smoothly follows fast movements.

Operators can store up to 256 preset memory locations via serial port control or 10 via the remote controller for instant angle recall. This memory capacity allows production teams to quickly switch between designated stage positions during broadcast workflows.

12G-SDI and NDI outputs for flexible broadcast distribution

Physical output interfaces including 12G-SDI, 3G-SDI CROP, HDMI 2.0, SFP+, and USB Type-C allow direct connectivity to hardware switchers, optical infrastructures, and live monitoring systems. These versatile hardware connections deliver video formats up to 3840×2160 at 60 frames per second, ensuring seamless signal integration across traditional broadcast control rooms and multi-camera studio environments.

IP distribution relies on a gigabit network port supporting high-bandwidth NDI with bitrates from 90Mbps to 250Mbps and NDI HX3 from 3Mbps to 120Mbps. Streaming protocols such as SRT, RTMP, RTMPS, RTSP, and MPEG-TS allow direct transmission to content delivery networks or remote production facilities without requiring standalone external encoders.

In addition to primary network streams, video encoding in H.264 and H.265 with sub-stream MJPEG support provides flexible secondary video streams for monitoring and web applications.

Genlock and FreeD integration for synchronized virtual production

Integrated Genlock clock synchronization aligns frame timing across multi-camera broadcast environments to prevent video tearing. Real-time FreeD technology integration continuously outputs camera positioning data to virtual studio engines. This precision tracking allows graphics systems to render virtual sets and augmented reality graphics perfectly in sync with physical pan, tilt, and zoom movements.

Audio connectivity includes a mini XLR input with phantom power for professional microphones and a 3.5mm stereo line-in to capture direct feeds from mixing consoles. Built-in tally light indicators provide clear visual status cues to presenters and operators during live broadcasts. Powering the unit is simplified through PoE++ support, delivering power, data, and control over a single network cable alongside a standard DC 12V power alternative.
